Automatic Rotogravure Printing Machine PE Film Gravure Rotogravure Printing Press
ATK-830 is 1-6 color printing ,max 830mm width printing,Support BOPP, PO, PE, PET, PVC and various plastic films and degrade material printing
Select specification:
Printing Color：
Product Attributes
Model：ATK-830
Printing Widths：800MM
Printing Material：BOPP, PO, PE, PET, PVC and various plastic films and degrade material printing
Max speed：90m/min
Printing speed：10-80m/min （Printing roller diameter≥Φ160mm）
Printing Weekly：Φ320mm~Φ1000mm
Scraper rotation：±5mm
Drying method：Infrared heating 6.3kw（per color）
Drying method：3 phase 380V
Product Detail
Product Description

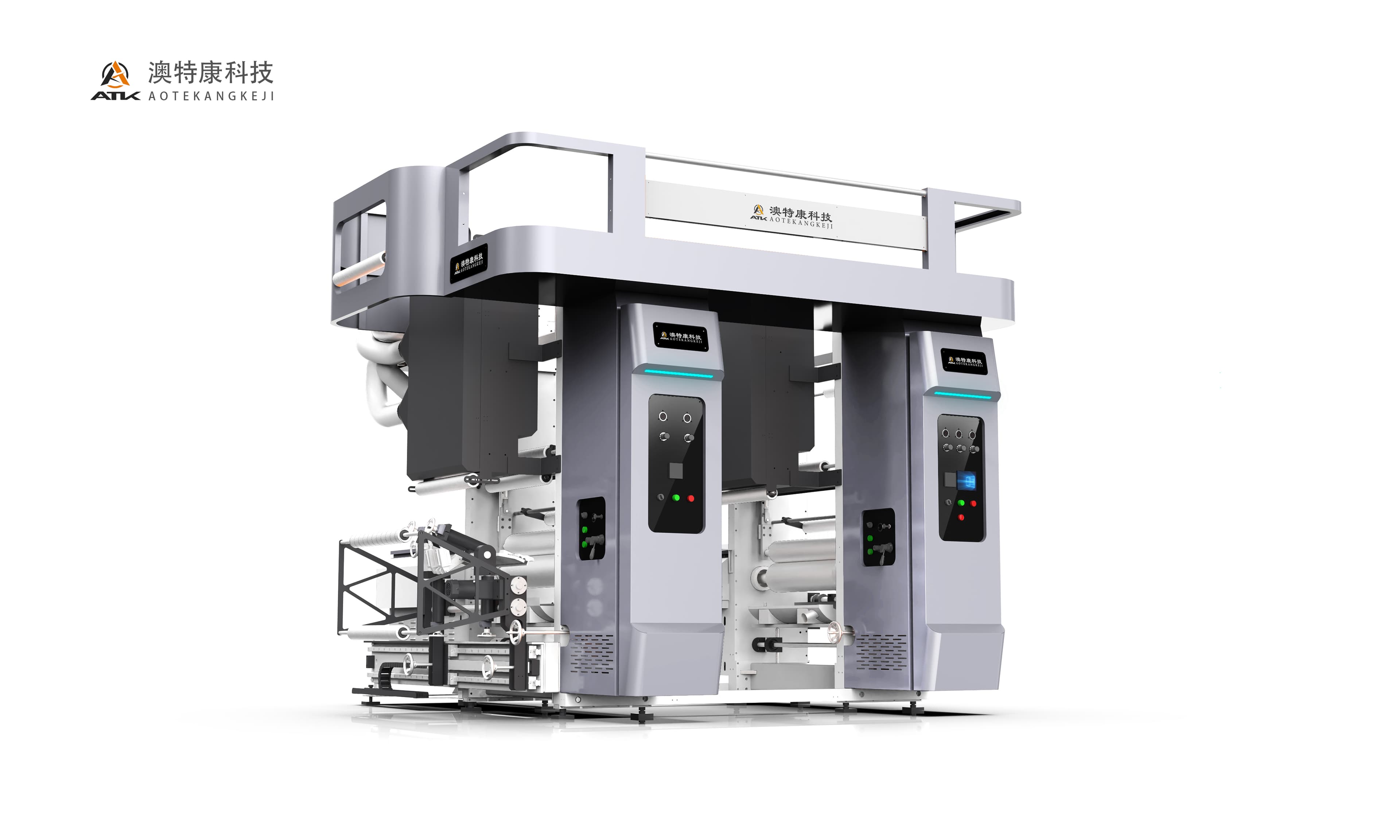

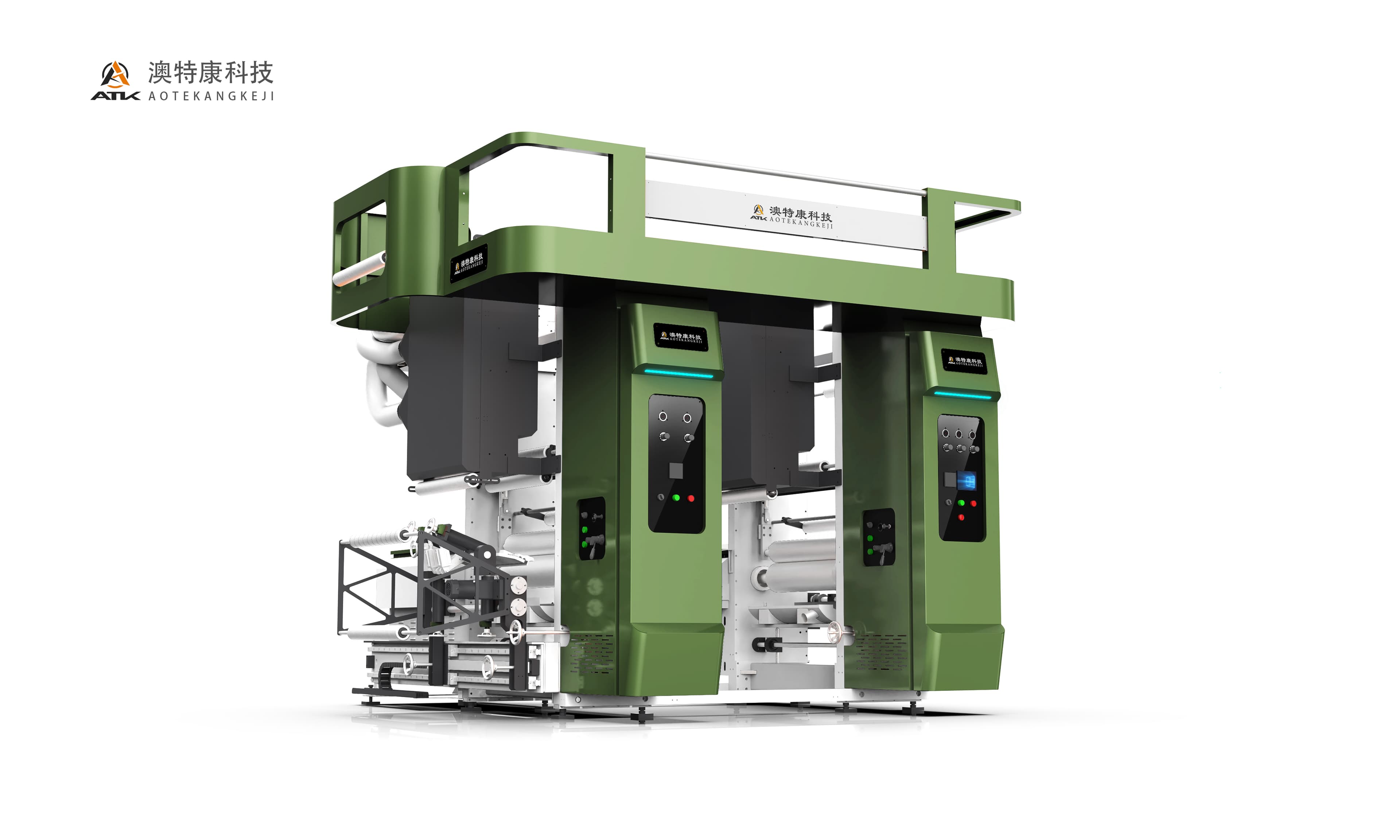

Automatic Rotogravure Printing Machine PE Film Gravure Rotogravure Printing Press
ATK-830 is 1-6 color printing ,max 830mm width printing,Support BOPP, PO, PE, PET, PVC and various plastic films and degrade material printing
Product Parameters
| Model | ATK -830 | |||||
| Printing Colors | 1 color | 2 color | 3 color | 4 color | 5 color | 6 color |
| Max material width | 830mm | |||||
| Max printing width | 830mm | |||||
| Max speed | 90m/min | |||||
| Printing speed | 10-80m/min （Printing roller diameter≥Φ160mm） | |||||
| Printing Weekly | Φ320mm~Φ1000mm | |||||
| Printing speed varies depending on printing materials, printing plate, printing ink, printing process, and the skill level of the operator. | ||||||
| Printing plate width | 850mm | |||||
| Scraper rotation | ±5mm | |||||
| Drying method | Infrared heating 6.3kw（per color） | |||||
| Main motor power | 2.2kw-4 | 4.0kw-4 | 5.5kw-4 | 5.5kw-4 | 5.5kw-4 | 7.5kw-4 |
| Voltage | 3 phase 380V ，single phase 220V ， 50Hz | |||||
| Machine dimensions | 1color：1442*2465*2200 | 2 color：3022*2465*2200 | 3 color：4602*2465*2200 | 4 color：6182*2465*2200 | 5 color：7762*2265*2200 | 6 color：9342*2265*2200 |
| Inlet wire | 6.0mm2 copper wire | 12.0mm2 copper wire | 16.0mm2 copper wire | 18.0mm2 copper wire | 20.0mm2 copper wire | 22.0mm2 copper wire |
Product Features
1. Maximum mechanical speed: 90 m/min
2. Plate circumference: 320 mm ~ 1000 mm
3. Drying method: 12 kW infrared heating (1 set)
4. Shaftless plate mounting; impression roller is a quick-change structure for rapid replacement.
5. Unit gearbox is an oil-immersed sealed gear transmission box with high-precision transmission gears.
6. Fully enclosed extended drying oven; heat source is infrared heating; energy-saving function.
7. Independent air inlet and outlet ducts; pre-set exhaust duct interface specifications; maximum air volume 2600-3500 m³/h.
8. Contactors, circuit breakers, and buttons are from Chint brand.
9. Pneumatics are from Xingchen.
10. Bearings are from Harbin.
11. This printing press can use environmentally friendly water-based inks and oils, supports fully biodegradable materials, and various blown film materials.
Appication Sample
About Us
FAQ
1. who are we?
We are located in Guangdong, China, start from 2013, which providing Gravure printing machine & Flexographic printing machine, which has independent technical teams and over 10 years technical and overseas sales experience.
2. how can we guarantee quality?
Always finishing a pre full testing by our professional engineers; Always final 100% Inspection before shipment;
3.what can you buy from us?
Gravure/Flexographic printing machine for PO,PE,BOPP,PET,PVC,and various plastic flims to degrade materials
4. why should you buy from us not from other suppliers?
1.We can provide with suitable package solution of Printing machine;
2.You can get good purchase experience and nice technical support;
3.We can provide customized design,high quality guarantee,competitive quotation,
honest and reliable business is our tenet.
